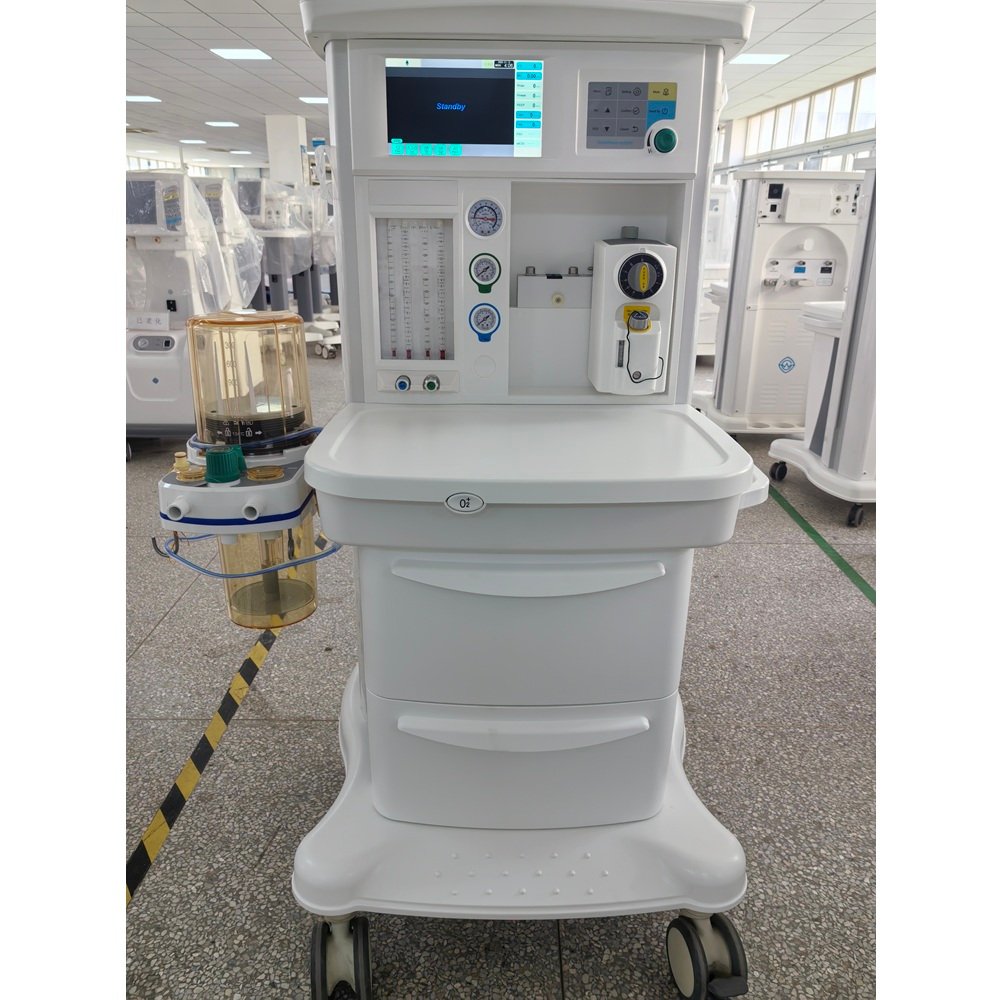

JHMAM03 Anesthesia Workstation – Precision & Safety for Adult & Pediatric Care

1. Integrated Breathing Circuit: Safety & Convenience in One

• Equipped with an APL valve for exceptional airtightness and operational safety, minimizing leakage risks during anesthesia.
• Circuit components withstand high-temperature sterilization at 134°C and high-pressure disinfection, ensuring strict hygiene standards.
• No need to replace drive bellows when switching between adult and pediatric modes—saves operational time and reduces costs.
• 2L sodium lime tank with a single-tank structure: easy to disassemble, clean, and maintain, enhancing workflow efficiency.

2. High-Precision Vaporizer: Cost-Saving & Reliable

• Advanced automatic compensation for temperature, flow, and pressure: maintains stable anesthetic concentration regardless of operating conditions.
• Ideal for low-flow anesthesia, significantly reducing anesthetic drug consumption while ensuring effective sedation.
• Compatible with multiple anesthetics: Enflurane, Isoflurane, Sevoflurane, Halothane, and more, adapting to diverse clinical needs.

3. Versatile Optional Features: Customizable for Every Facility

• ACGO (Auxiliary Common Gas Outlet): 22mm international standard design, convenient for patient oxygen inhalation and postoperative recovery. Compatible with T circuit or Bain circuit for open-operation scenarios.
• AGSS (Anesthetic Gas Scavenging System): Crafted from high-strength, lightweight, and rust-resistant aluminum alloy. Safely treats anesthetic waste gases, protecting operating room staff and the environment.
• Yoke System: Supports up to 3 backup A-type 11L cylinders (O2, N2O), ensuring uninterrupted supply during critical procedures.
• FiO2 Monitoring: Optional feature for real-time oxygen concentration tracking, enhancing patient safety.

4. Intuitive Operation & Comprehensive Monitoring

• 10.1-inch LCD screen: displays clear waveforms (P-T, F-T, V-T) and key parameters for intuitive operation and real-time clinical judgment.
• Multiple ventilation modes: MANUAL, VCV (Volume Control Ventilation), SIMV (Synchronized Intermittent Mandatory Ventilation), A/C (Assist/Control Ventilation)—covers all clinical scenarios from routine surgeries to complex cases.
• Comprehensive monitoring parameters: VT, MV, Pmax, Pmean, Lung compliance, Freg, FiO2 (optional), ETCO2 (optional)—provides full-cycle patient respiratory status insights.
• Audio/visual alarm system: alerts for no tidal volume, abnormal MV, Paw fluctuations, FiO2 deviations, air failure, AC power failure, and low battery—ensures timely response to potential risks.

Technical Specifications at a Glance
