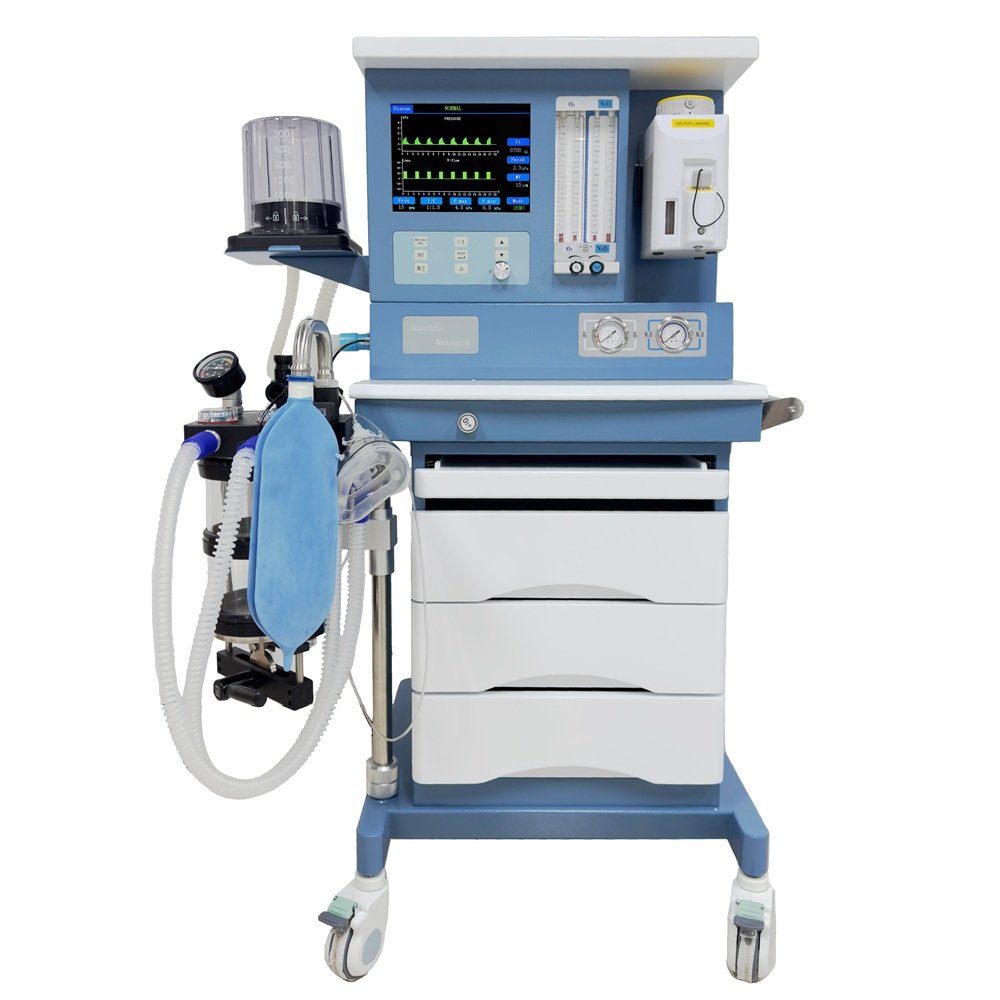

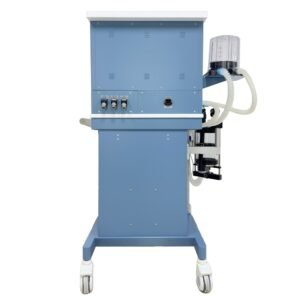

Product Overview

Core Functional Advantages

1. Dual Application & Multi-Mode Adaptability
   • Suitable for both adults and children, with dedicated bellows for each group—eliminating the need for separate equipment.
   • Working modes: Closed/Semi-Closed/Semi-Open System; Ventilation modes: IPPV, SIGH, SIMV/F/2, SIPPV (optional PEEP), MANUAL—covers all clinical scenarios.
2. Precise Gas & Anesthetic Control
   • Four flow meters: O₂ (0.1~10 L/min) and N₂O (0.1~10 L/min) with independent control, plus rapid oxygen supply (35~75 L/min) for emergencies.
   • Optional vaporizer (Isoflurane/Sevoflurane/Halothane): 0.2%~8% concentration range, with automatic flow/temperature/pressure compensation, self-lock & interlock functions—ensures safe and accurate anesthetic delivery.
3. Comprehensive Monitoring & Intuitive Display
   • 10.4-inch color TFT high-luminance screen: Clearly shows key parameters (tidal volume, respiratory rate, airway pressure) and P-T/V-T oscillograms.
   • Real-time monitoring: Tracks frequency (4~99 bpm), tidal volume (0~1500 mL), minute volume (0~100 L/min)—enables clinicians to grasp anesthesia status instantly.
4. Multi-Layered Safety Protection
   • Full-range alarms: Power failure, high/low airway pressure (0~100 cmH₂O), low oxygen, suffocation warning (5~60s no spontaneous ventilation), and more—prioritizes patient safety.
   • Pressure limit: <12.5 kPa; Continuous pressure alarm and low tidal volume alarm (20~990mL)—prevents airway injury.

Technical Specifications
