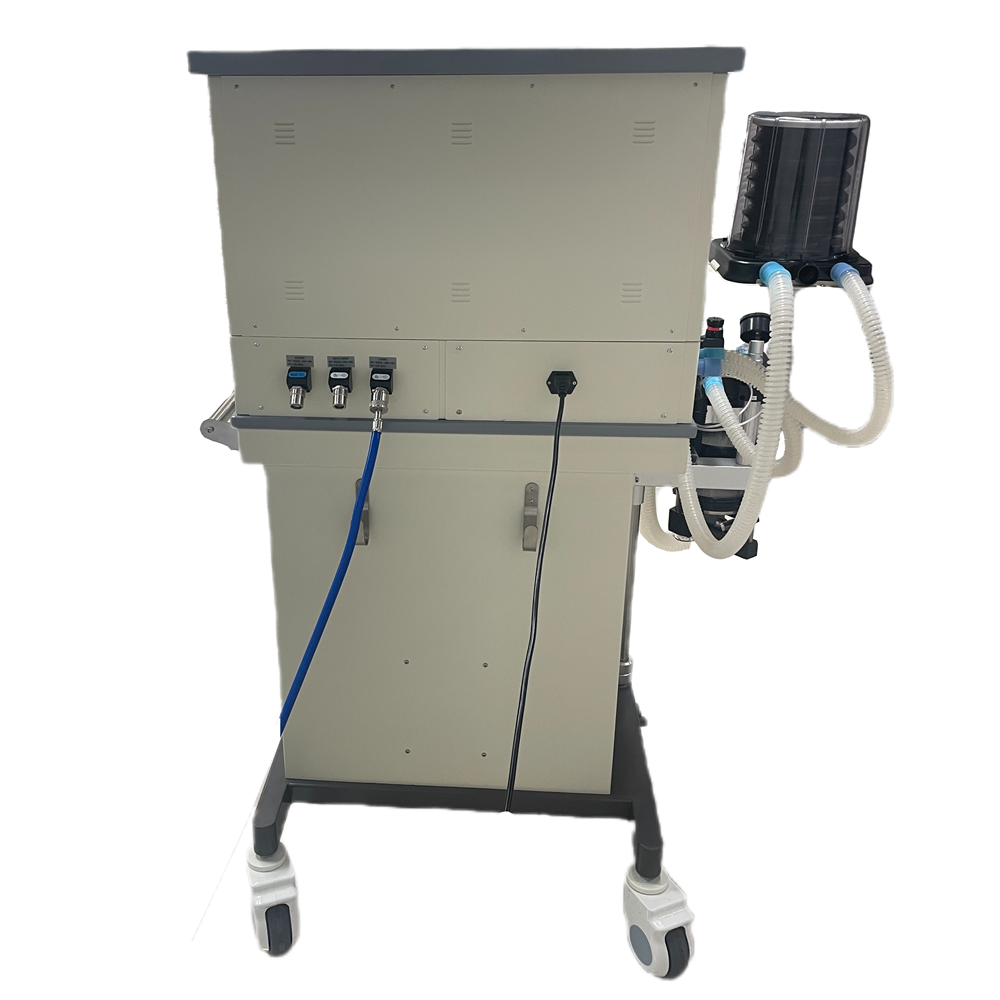

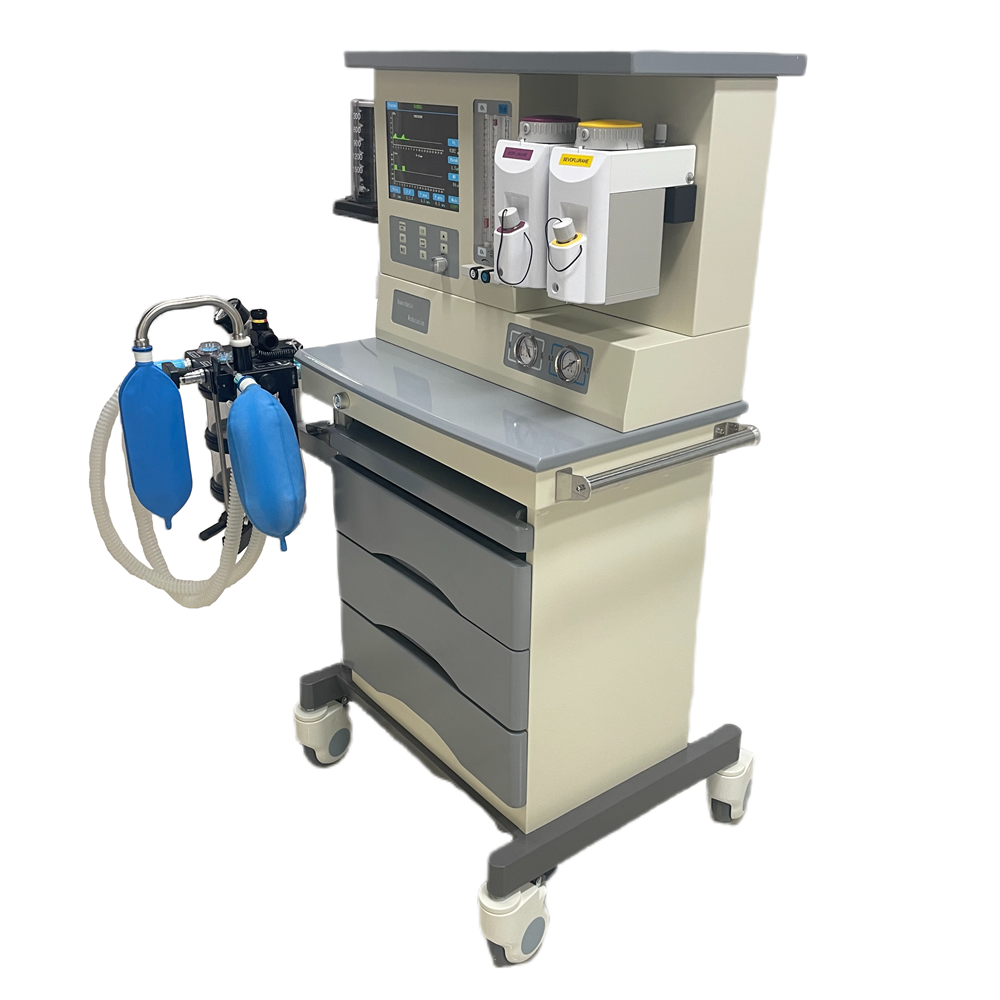

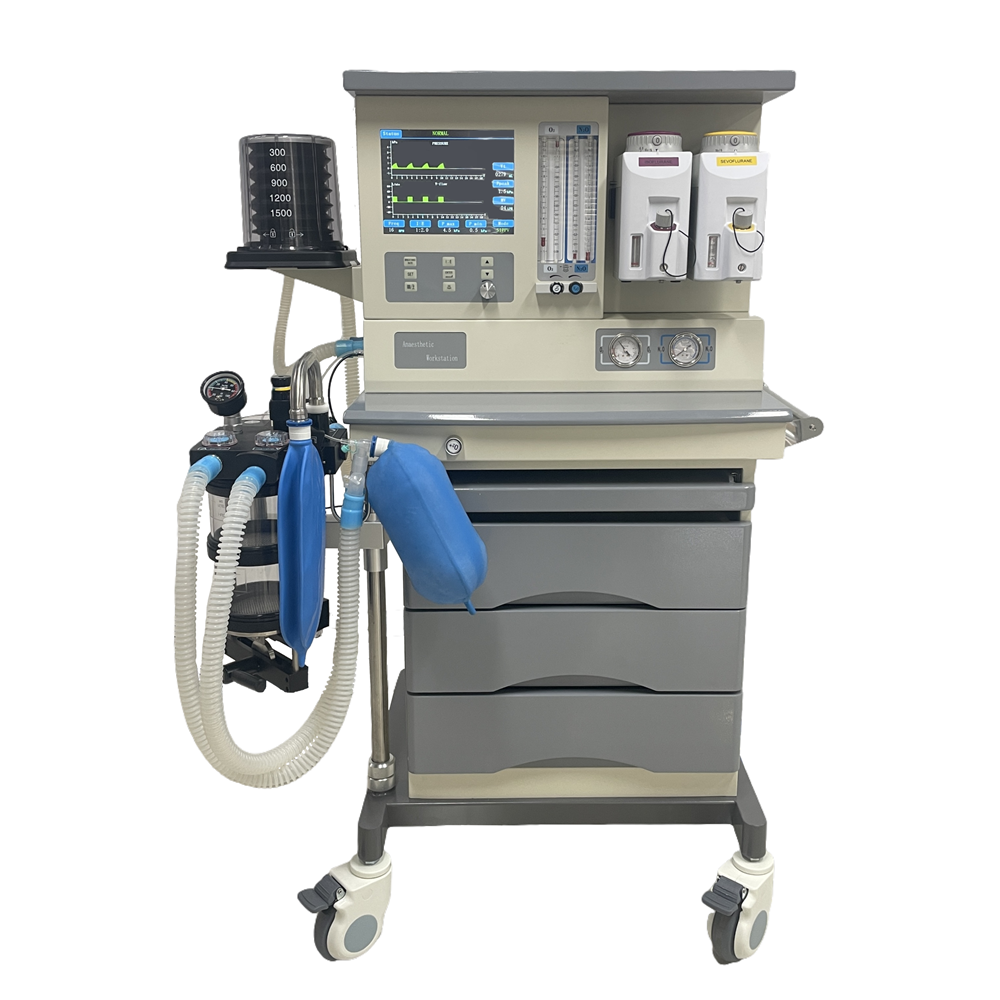

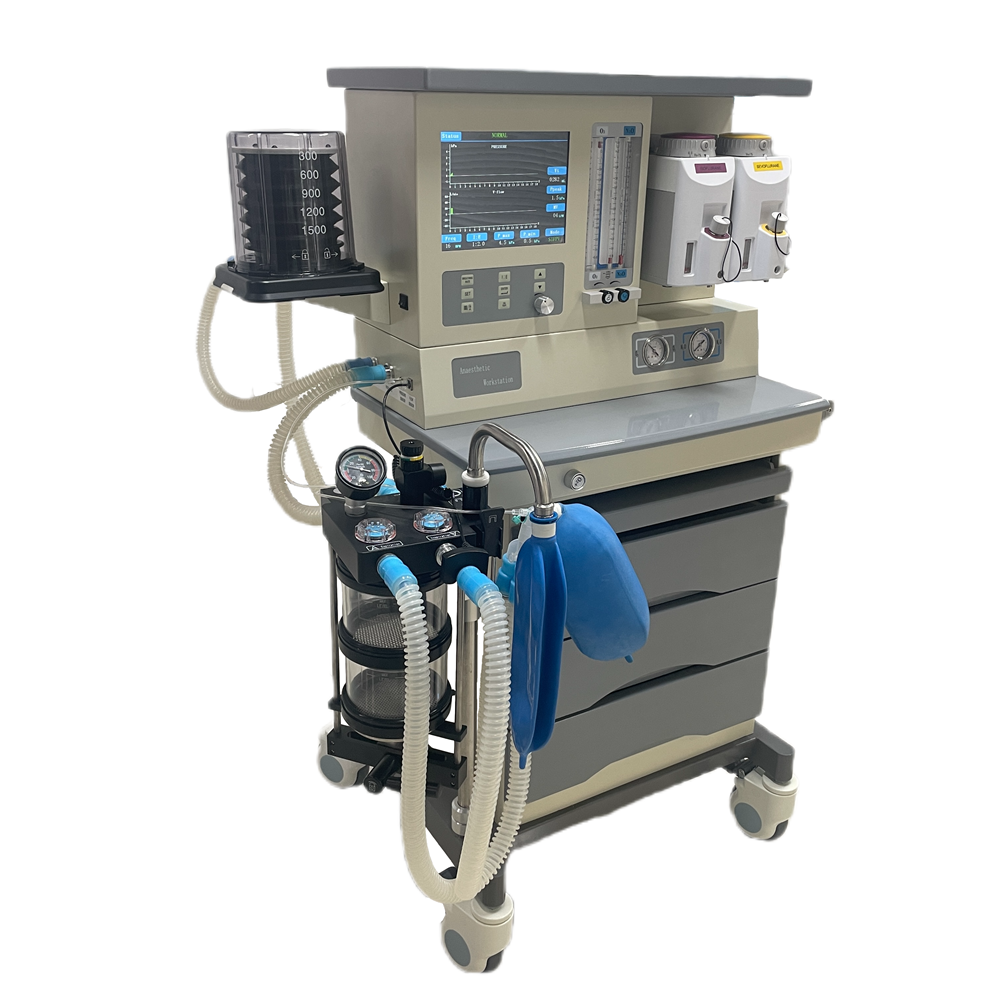

Product Overview
Designed for both adult and pediatric clinical scenarios, our JHMAM01 anesthesia machine integrates advanced pneumatic-electric control technology. It covers all core needs of surgical anesthesia—from precise gas mixing and anesthetic delivery to real-time monitoring and multi-layered safety protection. With customizable configurations and user-friendly operation, it’s a trusted partner for medical facilities worldwide.
Core Functional Advantages
-
Dual Application & Flexible Working Modes
- Suitable for adults and children with dedicated bellows, eliminating the need for separate equipment.
- Supports Closed, Semi-Closed, and Semi-Open working systems, matching diverse surgical requirements (routine operations, complex procedures, emergency resuscitation).
-
Multi-Optional Vaporizers & Precise Gas Control
- Vaporizer flexibility: Choose 2 out of 3 options (Isoflurane/Sevoflurane/Halothane) to fit different clinical preferences.
- Precise parameters: Concentration range 0.2%~8%, flow range 0.2~5L/min, with automatic flow/temperature/pressure compensation—ensures stable anesthetic delivery.
- Gas flow control: Independent Oâ‚‚ (0.1~10 L/min) and Nâ‚‚O (0.1~10 L/min) flow meters, plus rapid oxygen supply (35~75 L/min) for emergency situations.
-
Rich Ventilation Modes & Adjustable Parameters
- Ventilation modes: IPPV, SIGH, SIMV/F/2, SIPPV (optional PEEP), MANUAL—adapts to patients with different respiratory conditions.
- Key adjustable parameters: Tidal volume (30~1500 mL), respiratory rate (4~99 bpm), I:E ratio (2:1~1:8), PEEP (0~30 cmH2O), pressure control (5~60 cmH2O)—meets personalized ventilation needs.
-
Comprehensive Monitoring & Intuitive Display
- 10.4-inch color TFT high-luminance screen: Clearly displays frequency, tidal volume, minute volume (0~100 L/min), and P-T/V-T oscillograms—enables real-time grasp of anesthesia status.
- Sensitive triggering: Pressure triggering (-20~0 cmH2O) and flow triggering (0.5~30 L/min) ensure smooth patient-ventilator interaction.
-
Multi-Layered Safety Alarms & Protection
- Full-range alarm system: AC power failure, high/low airway pressure (0~100 cmH2O), low oxygen deficit, suffocation warning (5~60s no spontaneous ventilation), low tidal volume (20~990mL), and continuous pressure alarm—comprehensively safeguards patient safety.
- Pressure limit protection: Maximum limited pressure <12.5 kPa, preventing airway injury.
Technical Specifications
| Category |
Details |
| Overall Dimension |
10065140CM (LWH) |
| Core Parameters |
Upper airway pressure: 2~6KPa; Lower airway pressure: 0.6~2KPa; Apnea ventilation: 5~60s; SIGH ratio: 0~5/100 |
| Vaporizer Specifications |
Volume: 250mL; Mount: Pour-fill Selectatec Mount; Lock: Self-Lock & Interlock |
| Working Condition |
Voltage: 100~240V; Power frequency: 50/60Hz; Gas supply pressure (Oâ‚‚/Nâ‚‚O): 0.3~0.5MPa; Input pressure: 280~600KPa |
| Packing Information |
Wooden case (two sizes): 868299CM (92KGS) / 866176CM (67KGS); G.W.: 159KGS; N.W.: 119KGS; CBM: 1.1m³ |
